react 메인 화면 구성하고 Navigator로 화면 이동하게 만들기

생성문

npx react-native init sample25 --template react-native-template-typescript





설치문

npm install react-native-gesture-handler

npm install @react-navigation/native


npm install @react-navigation/bottom-tabs


npm install react-native-safe-area-context

npm install react-native-screens


npm install react-native-vector-icons

npm install watcher

npm i --save-dev @types/react-native-vector-icons





생성파일

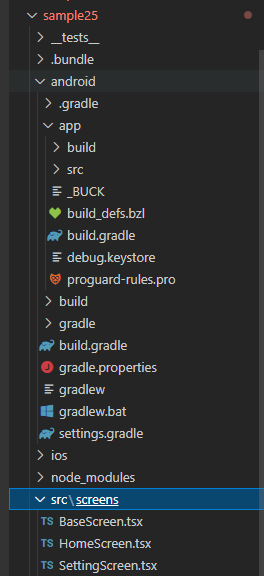

src 폴더 생성 > 그 안에 screens폴더 생성 > 그안에 BaseScreen, HomeScreen, SettingScreen tsx 생성



build.gradle 설정

android>app>build.gradle 에 코드 추가

apply plugin: "com.android.application"

import com.android.build.OutputFile

/**
 * The react.gradle file registers a task for each build variant (e.g. bundleDebugJsAndAssets
 * and bundleReleaseJsAndAssets).
 * These basically call `react-native bundle` with the correct arguments during the Android build
 * cycle. By default, bundleDebugJsAndAssets is skipped, as in debug/dev mode we prefer to load the
 * bundle directly from the development server. Below you can see all the possible configurations
 * and their defaults. If you decide to add a configuration block, make sure to add it before the
 * `apply from: "../../node_modules/react-native/react.gradle"` line.
 *
 * project.ext.react = [
 *   // the name of the generated asset file containing your JS bundle
 *   bundleAssetName: "index.android.bundle",
 *
 *   // the entry file for bundle generation. If none specified and
 *   // "index.android.js" exists, it will be used. Otherwise "index.js" is
 *   // default. Can be overridden with ENTRY_FILE environment variable.
 *   entryFile: "index.android.js",
 *
 *   // https://reactnative.dev/docs/performance#enable-the-ram-format
 *   bundleCommand: "ram-bundle",
 *
 *   // whether to bundle JS and assets in debug mode
 *   bundleInDebug: false,
 *
 *   // whether to bundle JS and assets in release mode
 *   bundleInRelease: true,
 *
 *   // whether to bundle JS and assets in another build variant (if configured).
 *   // See http://tools.android.com/tech-docs/new-build-system/user-guide#TOC-Build-Variants
 *   // The configuration property can be in the following formats
 *   //         'bundleIn${productFlavor}${buildType}'
 *   //         'bundleIn${buildType}'
 *   // bundleInFreeDebug: true,
 *   // bundleInPaidRelease: true,
 *   // bundleInBeta: true,
 *
 *   // whether to disable dev mode in custom build variants (by default only disabled in release)
 *   // for example: to disable dev mode in the staging build type (if configured)
 *   devDisabledInStaging: true,
 *   // The configuration property can be in the following formats
 *   //         'devDisabledIn${productFlavor}${buildType}'
 *   //         'devDisabledIn${buildType}'
 *
 *   // the root of your project, i.e. where "package.json" lives
 *   root: "../../",
 *
 *   // where to put the JS bundle asset in debug mode
 *   jsBundleDirDebug: "$buildDir/intermediates/assets/debug",
 *
 *   // where to put the JS bundle asset in release mode
 *   jsBundleDirRelease: "$buildDir/intermediates/assets/release",
 *
 *   // where to put drawable resources / React Native assets, e.g. the ones you use via
 *   // require('./image.png')), in debug mode
 *   resourcesDirDebug: "$buildDir/intermediates/res/merged/debug",
 *
 *   // where to put drawable resources / React Native assets, e.g. the ones you use via
 *   // require('./image.png')), in release mode
 *   resourcesDirRelease: "$buildDir/intermediates/res/merged/release",
 *
 *   // by default the gradle tasks are skipped if none of the JS files or assets change; this means
 *   // that we don't look at files in android/ or ios/ to determine whether the tasks are up to
 *   // date; if you have any other folders that you want to ignore for performance reasons (gradle
 *   // indexes the entire tree), add them here. Alternatively, if you have JS files in android/
 *   // for example, you might want to remove it from here.
 *   inputExcludes: ["android/**", "ios/**"],
 *
 *   // override which node gets called and with what additional arguments
 *   nodeExecutableAndArgs: ["node"],
 *
 *   // supply additional arguments to the packager
 *   extraPackagerArgs: []
 * ]
 */

project.ext.react = [
    enableHermes: false,  // clean and rebuild if changing
]

apply from: "../../node_modules/react-native/react.gradle"

/**
 * Set this to true to create two separate APKs instead of one:
 *   - An APK that only works on ARM devices
 *   - An APK that only works on x86 devices
 * The advantage is the size of the APK is reduced by about 4MB.
 * Upload all the APKs to the Play Store and people will download
 * the correct one based on the CPU architecture of their device.
 */
def enableSeparateBuildPerCPUArchitecture = false

/**
 * Run Proguard to shrink the Java bytecode in release builds.
 */
def enableProguardInReleaseBuilds = false

/**
 * The preferred build flavor of JavaScriptCore.
 *
 * For example, to use the international variant, you can use:
 * `def jscFlavor = 'org.webkit:android-jsc-intl:+'`
 *
 * The international variant includes ICU i18n library and necessary data
 * allowing to use e.g. `Date.toLocaleString` and `String.localeCompare` that
 * give correct results when using with locales other than en-US.  Note that
 * this variant is about 6MiB larger per architecture than default.
 */
def jscFlavor = 'org.webkit:android-jsc:+'

/**
 * Whether to enable the Hermes VM.
 *
 * This should be set on project.ext.react and that value will be read here. If it is not set
 * on project.ext.react, JavaScript will not be compiled to Hermes Bytecode
 * and the benefits of using Hermes will therefore be sharply reduced.
 */
def enableHermes = project.ext.react.get("enableHermes", false);

/**
 * Architectures to build native code for in debug.
 */
def nativeArchitectures = project.getProperties().get("reactNativeDebugArchitectures")

android {
    ndkVersion rootProject.ext.ndkVersion

    compileSdkVersion rootProject.ext.compileSdkVersion

    defaultConfig {
        applicationId "com.sample25"
        minSdkVersion rootProject.ext.minSdkVersion
        targetSdkVersion rootProject.ext.targetSdkVersion
        versionCode 1
        versionName "1.0"
    }
    splits {
        abi {
            reset()
            enable enableSeparateBuildPerCPUArchitecture
            universalApk false  // If true, also generate a universal APK
            include "armeabi-v7a", "x86", "arm64-v8a", "x86_64"
        }
    }
    signingConfigs {
        debug {
            storeFile file('debug.keystore')
            storePassword 'android'
            keyAlias 'androiddebugkey'
            keyPassword 'android'
        }
    }
    buildTypes {
        debug {
            signingConfig signingConfigs.debug
            if (nativeArchitectures) {
                ndk {
                    abiFilters nativeArchitectures.split(',')
                }
            }
        }
        release {
            // Caution! In production, you need to generate your own keystore file.
            // see https://reactnative.dev/docs/signed-apk-android.
            signingConfig signingConfigs.debug
            minifyEnabled enableProguardInReleaseBuilds
            proguardFiles getDefaultProguardFile("proguard-android.txt"), "proguard-rules.pro"
        }
    }

    // applicationVariants are e.g. debug, release
    applicationVariants.all { variant ->
        variant.outputs.each { output ->
            // For each separate APK per architecture, set a unique version code as described here:
            // https://developer.android.com/studio/build/configure-apk-splits.html
            // Example: versionCode 1 will generate 1001 for armeabi-v7a, 1002 for x86, etc.
            def versionCodes = ["armeabi-v7a": 1, "x86": 2, "arm64-v8a": 3, "x86_64": 4]
            def abi = output.getFilter(OutputFile.ABI)
            if (abi != null) {  // null for the universal-debug, universal-release variants
                output.versionCodeOverride =
                        defaultConfig.versionCode * 1000 + versionCodes.get(abi)
            }

        }
    }
}

dependencies {
    implementation fileTree(dir: "libs", include: ["*.jar"])
    //noinspection GradleDynamicVersion
    implementation "com.facebook.react:react-native:+"  // From node_modules

    implementation "androidx.swiperefreshlayout:swiperefreshlayout:1.0.0"

    debugImplementation("com.facebook.flipper:flipper:${FLIPPER_VERSION}") {
        exclude group:'com.facebook.fbjni'
    }

    debugImplementation("com.facebook.flipper:flipper-network-plugin:${FLIPPER_VERSION}") {
        exclude group:'com.facebook.flipper'
        exclude group:'com.squareup.okhttp3', module:'okhttp'
    }

    debugImplementation("com.facebook.flipper:flipper-fresco-plugin:${FLIPPER_VERSION}") {
        exclude group:'com.facebook.flipper'
    }

    if (enableHermes) {
        def hermesPath = "../../node_modules/hermes-engine/android/";
        debugImplementation files(hermesPath + "hermes-debug.aar")
        releaseImplementation files(hermesPath + "hermes-release.aar")
    } else {
        implementation jscFlavor
    }
}

// Run this once to be able to run the application with BUCK
// puts all compile dependencies into folder libs for BUCK to use
task copyDownloadableDepsToLibs(type: Copy) {
    from configurations.implementation
    into 'libs'
}

project.ext.vectoricons = [
  iconFontNames: [ 'Ionicons.ttf', 'FontAwesome.ttf' ]
]


apply from: file("../../node_modules/@react-native-community/cli-platform-android/native_modules.gradle"); applyNativeModulesAppBuildGradle(project)


apply from: "../../node_modules/react-native-vector-icons/fonts.gradle"



아래의 두개 코드만 추가된 것.

project.ext.vectoricons = [
  iconFontNames: [ 'Ionicons.ttf', 'FontAwesome.ttf' ]
]

-apply from: "../../node_modules/react-native-vector-icons/fonts.gradle"





HomeScreen.tsx

import React from "react";
import { StyleSheet, Text, View } from "react-native";

export default function HomeScreen(){


    return(
        <View style={styles.container}>
            <Text>Home Screen</Text>
        </View>
    )
}


const styles = StyleSheet.create({
    container:{
        backgroundColor:'#ffffff'
    }
})





BaseScreen.tsx

import React from "react";
import { StyleSheet, Text, View } from "react-native";

export default function BaseScreen(){


    return(
        <View style={styles.container}>
            <Text>Base Screen</Text>
        </View>
    )
}

const styles = StyleSheet.create({
    container:{
        backgroundColor:'#00ff00'
    }
})



SettingScreen.tsx

import React from "react";
import { StyleSheet, Text, View } from "react-native";

export default function SettingScreen(){

    return(
        <View style={styles.container}>
            <Text>Setting Screen</Text>
        </View>
    )
}


const styles = StyleSheet.create({
    container:{
        backgroundColor:'grey'
    }
})

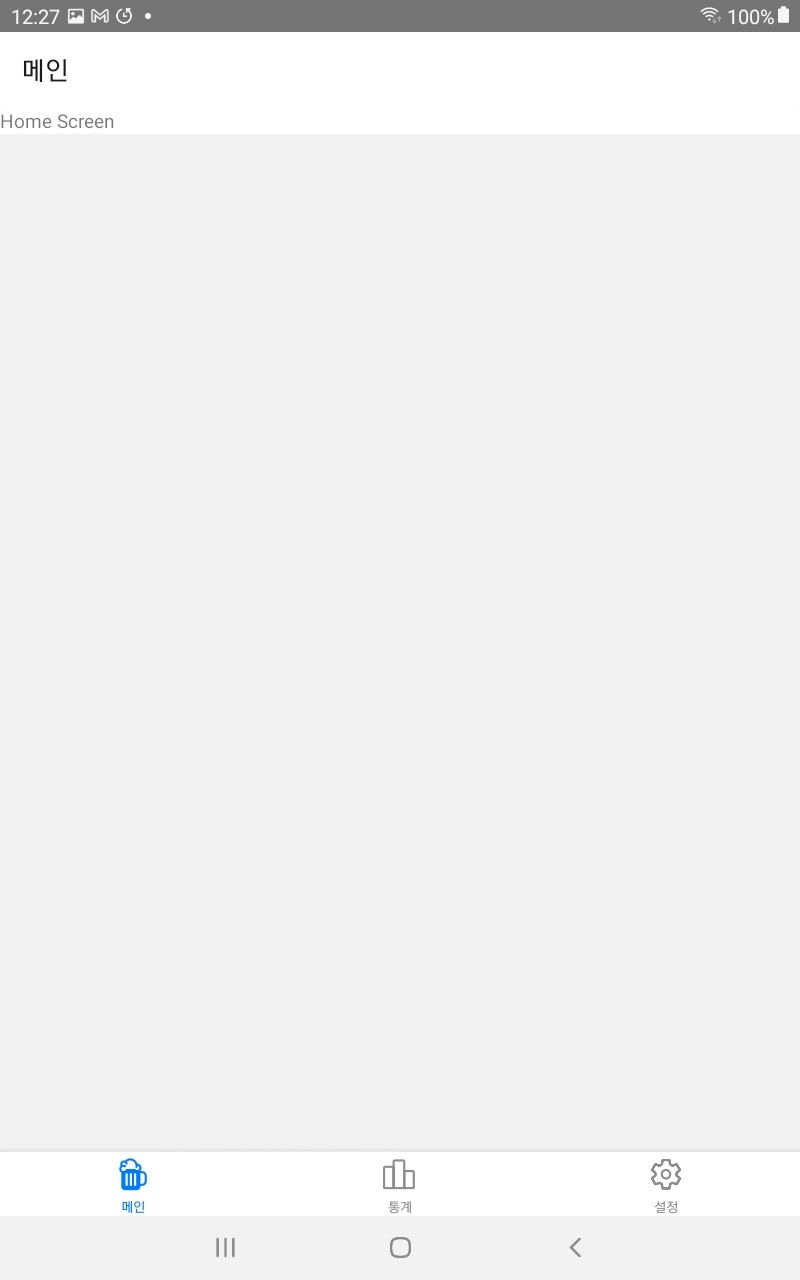

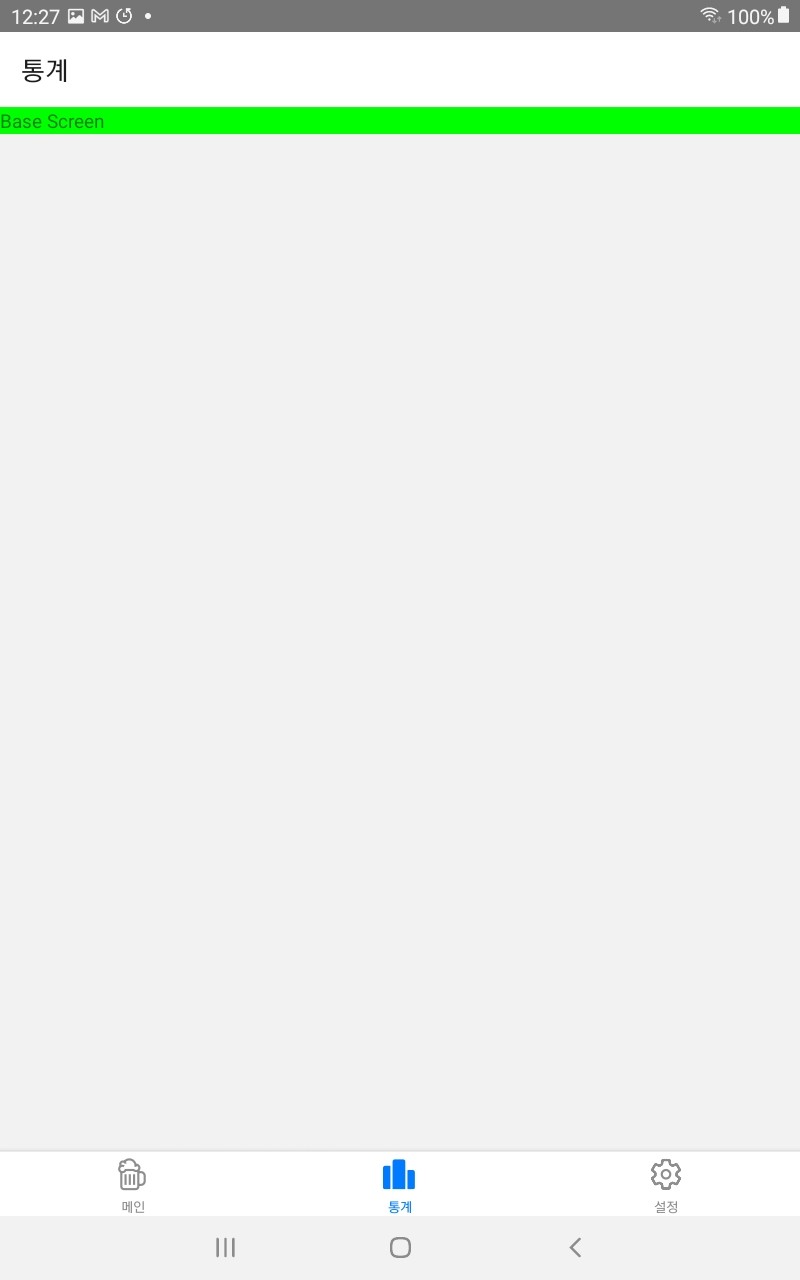

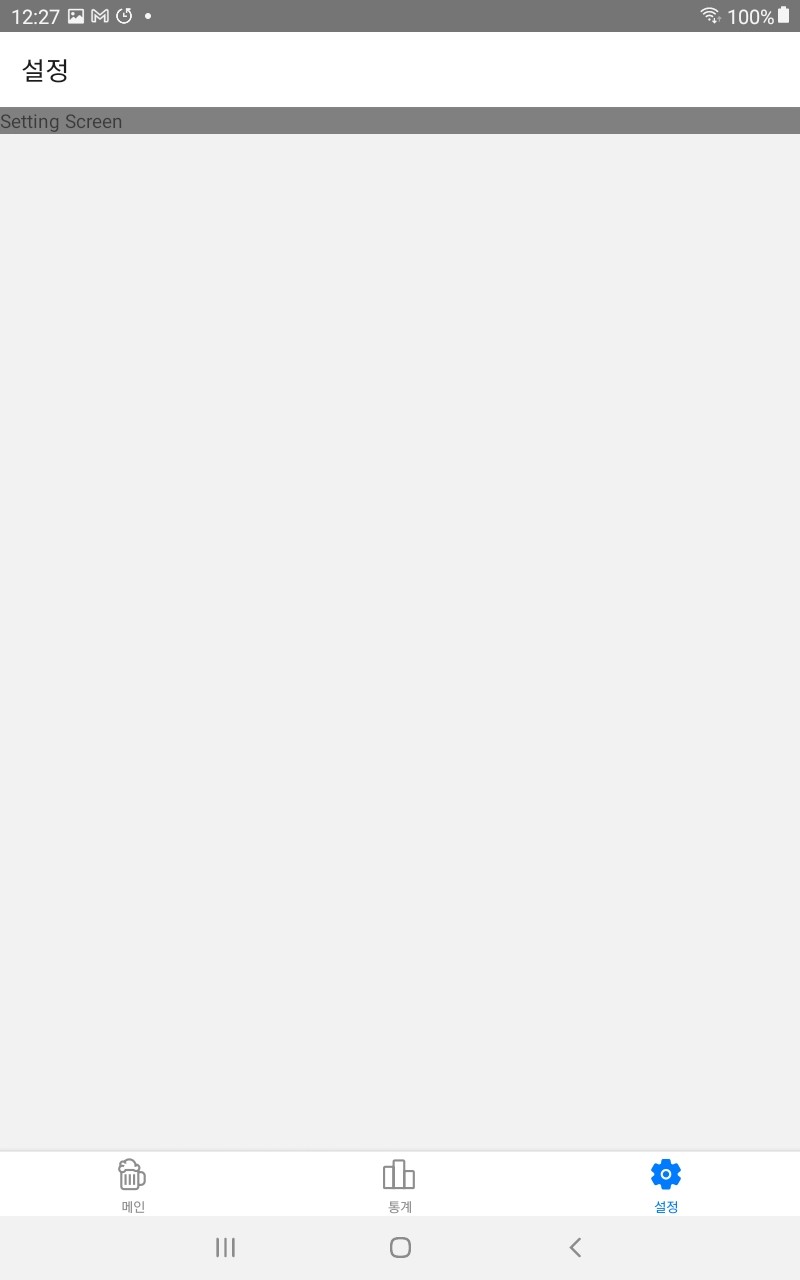

실행화면
