Kotlin 정렬된 grid 안드로이드 화면에 표시하기, grid에서 선택한 사항 textview랑 연결하기

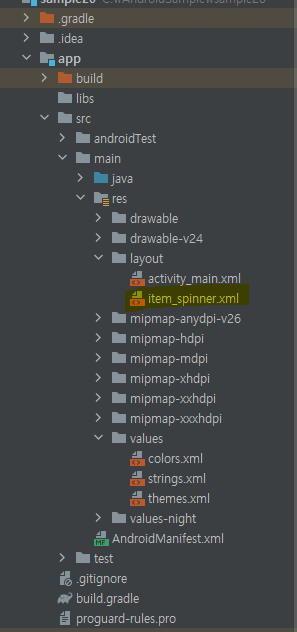

폴더 및 파일 구성

layout 폴더에 item_spinner.xml항목 추가



item_spinner.xml

<?xml version="1.0" encoding="utf-8"?>
<TextView
    xmlns:android="http://schemas.android.com/apk/res/android"
    android:id="@+id/listItem"
    android:layout_width="match_parent"
    android:layout_height="45dp"
    android:paddingTop="10dp"
    android:paddingStart="30dp"
    android:textColor="@android:color/darker_gray"
    android:textSize="15sp"
    android:paddingLeft="30dp"/>

activity_main.xml

<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout
        xmlns:android="http://schemas.android.com/apk/res/android"
        xmlns:tools="http://schemas.android.com/tools"
        xmlns:app="http://schemas.android.com/apk/res-auto"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        tools:context=".MainActivity">

    <TextView
            android:id="@+id/textView"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:text="Hello World!"
            app:layout_constraintBottom_toBottomOf="parent"
            app:layout_constraintLeft_toLeftOf="parent"
            app:layout_constraintRight_toRightOf="parent"
            app:layout_constraintTop_toTopOf="parent"
            app:layout_constraintVertical_bias="0.031"
    />
    <GridView
            android:id="@+id/grid"
            android:numColumns="auto_fit"
            android:columnWidth="100dp"
            android:layout_width="531dp"
            android:layout_height="773dp"
            app:layout_constraintTop_toTopOf="parent"
            app:layout_constraintBottom_toBottomOf="parent"
            app:layout_constraintEnd_toEndOf="parent"
            app:layout_constraintStart_toStartOf="parent"
            app:layout_constraintHorizontal_bias="0.507"
            app:layout_constraintVertical_bias="0.839"/>

</androidx.constraintlayout.widget.ConstraintLayout>







MainActivity.kt

package com.example.sample20

import androidx.appcompat.app.AppCompatActivity
import android.os.Bundle
import android.view.View
import android.widget.ArrayAdapter
import android.widget.GridView
import android.widget.TextView

class MainActivity : AppCompatActivity() {

    var items = arrayOf(
        "서울", "부산", "대구", "광주", "인천", "목포", "여수", "태백",
        "서울", "부산", "대구", "광주", "인천", "목포", "여수", "태백",
        "서울", "부산", "대구", "광주", "인천", "목포", "여수", "태백",
        "서울", "부산", "대구", "광주", "인천", "목포", "여수", "태백"
    )

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setContentView(R.layout.activity_main)

        val textView = findViewById<View>(R.id.textView) as TextView
        val grid = findViewById<View>(R.id.grid) as GridView

        grid.setAdapter(
            ArrayAdapter(this,R.layout.item_spinner, items)
            //layout폴더에 있는 item_spinner.xml파일과 지역명 적인 배열 items 연결하는
            //어댑터를 grid에 세팅
        )

        grid.setOnItemClickListener{parent, view, position,id ->
            textView.text = items[position]

            //textView에 선택된 지역명 표시되도록 연결
        }

    }
}

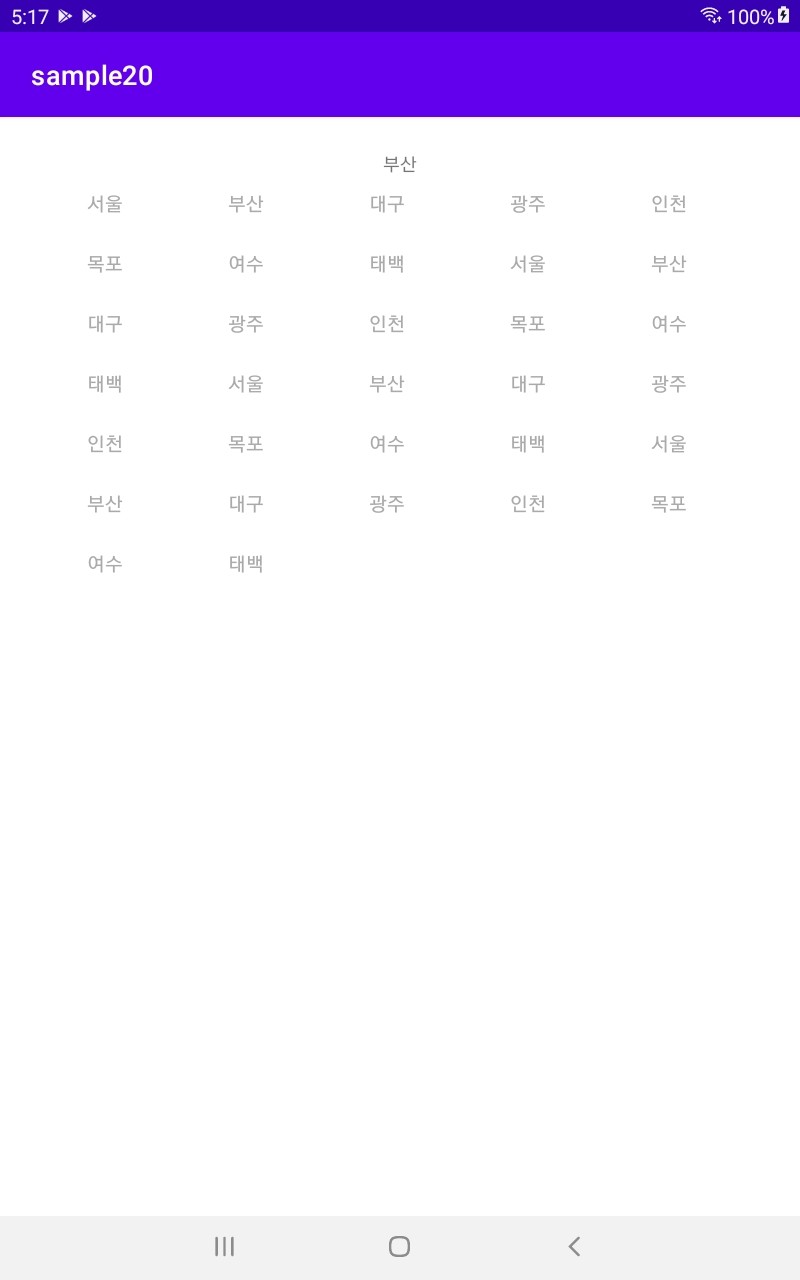

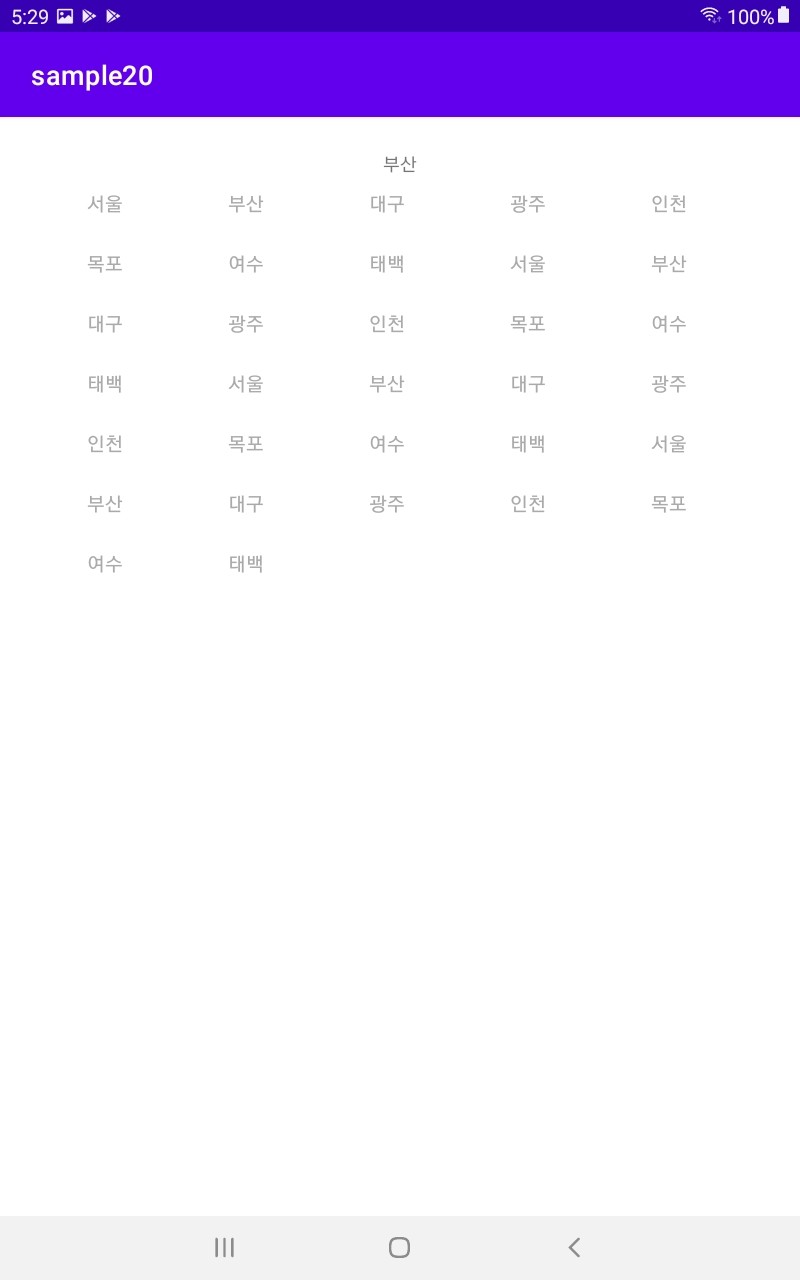

 결과화면
