Kotlin 코틀린 안드로이드 화면에 카메라 연결하고 촬영하기, 촬영된 사진 및 저장된 사진 불러와서 화면에 연결하기

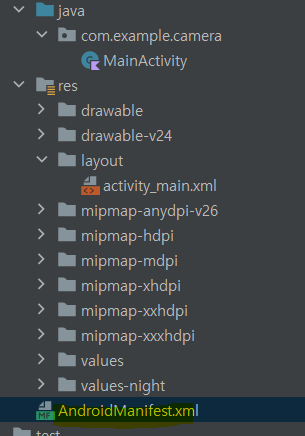

파일 경로 및 폴더 위치



AndroidManifest.xml



기존의 AndroidManifest에 아래의 부분을 적용하였다.

  <uses-permission android:name="android.permission.CAMERA"></uses-permission>
    <uses-permission android:name="android.permission.WRITE_EXTERNAL_STORAGE"></uses-permission>
    <uses-permission android:name="android.permission.READ_EXTERNAL_STORAGE"></uses-permission>



적용한 전체코드

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
          package="com.example.camera">
    <uses-permission android:name="android.permission.CAMERA"></uses-permission>
    <uses-permission android:name="android.permission.WRITE_EXTERNAL_STORAGE"></uses-permission>
    <uses-permission android:name="android.permission.READ_EXTERNAL_STORAGE"></uses-permission>

    <application
            android:allowBackup="true"
            android:icon="@mipmap/ic_launcher"
            android:label="@string/app_name"
            android:roundIcon="@mipmap/ic_launcher_round"
            android:supportsRtl="true"
            android:theme="@style/Theme.Camera">
        <activity
                android:name=".MainActivity"
                android:exported="true">
            <intent-filter>
                <action android:name="android.intent.action.MAIN"/>

                <category android:name="android.intent.category.LAUNCHER"/>
            </intent-filter>
        </activity>
    </application>

</manifest>



activity_main.xml

<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout
        xmlns:android="http://schemas.android.com/apk/res/android"
        xmlns:tools="http://schemas.android.com/tools"
        xmlns:app="http://schemas.android.com/apk/res-auto"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        tools:context=".MainActivity">

    <ImageView
            android:layout_width="500dp"
            android:layout_height="500dp"
            tools:srcCompat="@tools:sample/avatars"
            android:id="@+id/avatars"
            app:layout_constraintTop_toTopOf="parent"
            app:layout_constraintBottom_toBottomOf="parent"
            app:layout_constraintEnd_toEndOf="parent"
            app:layout_constraintStart_toStartOf="parent" app:layout_constraintHorizontal_bias="0.496"
            app:layout_constraintVertical_bias="0.563"/>
    <Button
            android:text="picture"
            android:layout_width="100dp"
            android:layout_height="100dp"
            android:id="@+id/picture"
            app:layout_constraintTop_toTopOf="parent"
            app:layout_constraintBottom_toBottomOf="parent"
            app:layout_constraintEnd_toEndOf="parent"
            app:layout_constraintStart_toStartOf="parent"
            app:layout_constraintHorizontal_bias="0.69"
            app:layout_constraintVertical_bias="0.082"/>
    <Button
            android:text="camera"
            android:layout_width="100dp"
            android:layout_height="100dp"
            android:id="@+id/camera"
            app:layout_constraintTop_toTopOf="parent"
            app:layout_constraintBottom_toBottomOf="parent"
            app:layout_constraintEnd_toEndOf="parent"
            app:layout_constraintStart_toStartOf="parent"
            app:layout_constraintHorizontal_bias="0.273"
            app:layout_constraintVertical_bias="0.082"/>
</androidx.constraintlayout.widget.ConstraintLayout>

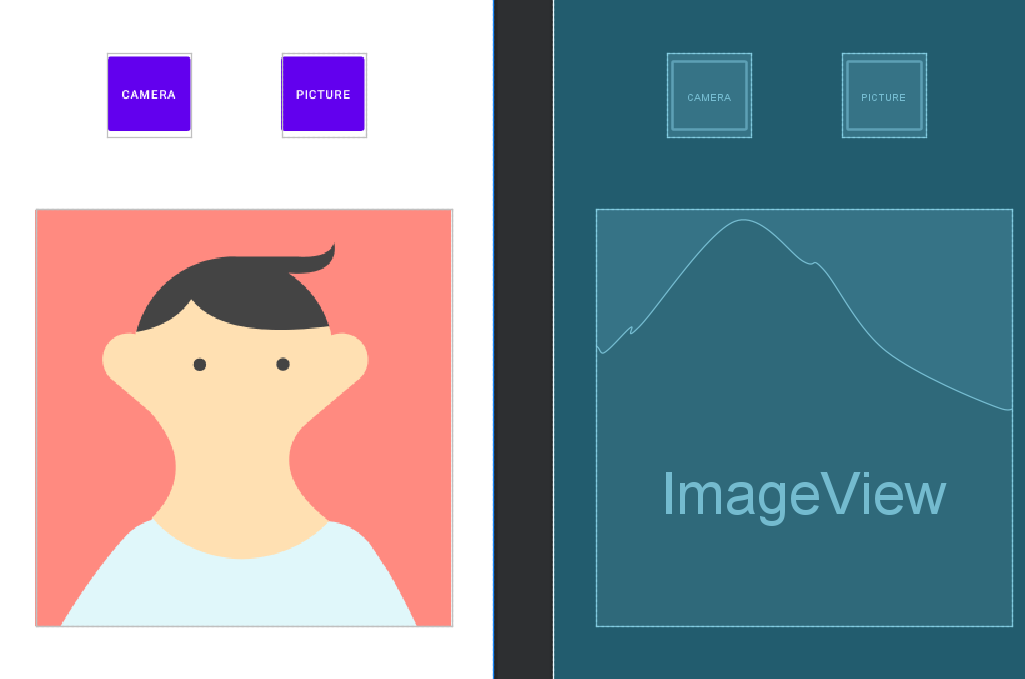

디자인 함수



MainActivity.kt

package com.example.camera

import android.Manifest
import android.app.Activity
import android.content.ContentValues
import android.content.Intent
import android.content.pm.PackageManager
import android.graphics.Bitmap
import android.graphics.Camera
import android.net.Uri
import android.os.Build
import androidx.appcompat.app.AppCompatActivity
import android.os.Bundle
import android.provider.MediaStore
import android.widget.Button
import android.widget.ImageView
import android.widget.Toast
import androidx.core.app.ActivityCompat
import androidx.core.content.ContextCompat
import java.io.FileOutputStream
import java.text.SimpleDateFormat

class MainActivity : AppCompatActivity() {

    // storage 권한 처리에 필요한 변수
    val CAMERA = arrayOf(Manifest.permission.CAMERA)
    val STORAGE = arrayOf(Manifest.permission.READ_EXTERNAL_STORAGE,
        Manifest.permission.WRITE_EXTERNAL_STORAGE)
    val CAMERA_CODE = 98
    val STORAGE_CODE = 99

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setContentView(R.layout.activity_main)

        // 카메라
        val camera = findViewById<Button>(R.id.camera)
        camera.setOnClickListener {
            CallCamera()
        }

        // 사진 저장
        val picture = findViewById<Button>(R.id.picture)
        picture.setOnClickListener {
            GetAlbum()
        }


    }

    // 카메라 권한, 저장소 권한
    // 요청 권한
    override fun onRequestPermissionsResult(requestCode: Int,
                                            permissions: Array<out String>, grantResults: IntArray) {
        super.onRequestPermissionsResult(requestCode, permissions, grantResults)

        when(requestCode){
            CAMERA_CODE -> {
                for (grant in grantResults){
                    if(grant != PackageManager.PERMISSION_GRANTED){
                        Toast.makeText(this, "카메라 권한을 승인해 주세요", Toast.LENGTH_LONG).show()
                    }
                }
            }
            STORAGE_CODE -> {
                for(grant in grantResults){
                    if(grant != PackageManager.PERMISSION_GRANTED){
                        Toast.makeText(this, "저장소 권한을 승인해 주세요", Toast.LENGTH_LONG).show()
                    }
                }
            }
        }
    }

    // 다른 권한등도 확인이 가능하도록
    fun checkPermission(permissions: Array<out String>, type:Int):Boolean{
        if(Build.VERSION.SDK_INT >= Build.VERSION_CODES.M){
            for (permission in permissions){
                if(ContextCompat.checkSelfPermission(this, permission)
                    != PackageManager.PERMISSION_GRANTED){
                    ActivityCompat.requestPermissions(this, permissions, type)
                    return false
                }
            }
        }
        return true
    }

    // 카메라 촬영 - 권한 처리
    fun CallCamera(){
        if(checkPermission(CAMERA, CAMERA_CODE) && checkPermission(STORAGE, STORAGE_CODE)){
            val itt = Intent(MediaStore.ACTION_IMAGE_CAPTURE)
            startActivityForResult(itt, CAMERA_CODE)
        }
    }

    // 사진 저장
    fun saveFile(fileName:String, mimeType:String, bitmap: Bitmap):Uri?{

        var CV = ContentValues()

        // MediaStore 에 파일명, mimeType 을 지정
        CV.put(MediaStore.Images.Media.DISPLAY_NAME, fileName)
        CV.put(MediaStore.Images.Media.MIME_TYPE, mimeType)

        // 안정성 검사
        if(Build.VERSION.SDK_INT >= Build.VERSION_CODES.Q){
            CV.put(MediaStore.Images.Media.IS_PENDING, 1)
        }

        // MediaStore 에 파일을 저장
        val uri = contentResolver.insert(MediaStore.Images.Media.EXTERNAL_CONTENT_URI, CV)
        if(uri != null){
            var scriptor = contentResolver.openFileDescriptor(uri, "w")

            val fos = FileOutputStream(scriptor?.fileDescriptor)

            bitmap.compress(Bitmap.CompressFormat.JPEG, 100, fos)
            fos.close()

            if(Build.VERSION.SDK_INT >= Build.VERSION_CODES.Q){
                CV.clear()
                // IS_PENDING 을 초기화
                CV.put(MediaStore.Images.Media.IS_PENDING, 0)
                contentResolver.update(uri, CV, null, null)
            }
        }
        return uri
    }

    // 결과
    override fun onActivityResult(requestCode: Int, resultCode: Int, data: Intent?) {
        super.onActivityResult(requestCode, resultCode, data)

        val imageView = findViewById<ImageView>(R.id.avatars)

        if(resultCode == Activity.RESULT_OK){
            when(requestCode){
                CAMERA_CODE -> {
                    if(data?.extras?.get("data") != null){
                        val img = data?.extras?.get("data") as Bitmap
                        val uri = saveFile(RandomFileName(), "image/jpeg", img)
                        imageView.setImageURI(uri)
                    }
                }
                STORAGE_CODE -> {
                    val uri = data?.data
                    imageView.setImageURI(uri)
                }
            }
        }
    }

    // 파일명을 날짜 저장
    fun RandomFileName() : String{
        val fileName = SimpleDateFormat("yyyyMMddHHmmss").format(System.currentTimeMillis())
        return fileName
    }

    // 갤러리 취득
    fun GetAlbum(){
        if(checkPermission(STORAGE, STORAGE_CODE)){
            val itt = Intent(Intent.ACTION_PICK)
            itt.type = MediaStore.Images.Media.CONTENT_TYPE
            startActivityForResult(itt, STORAGE_CODE)
        }
    }
}

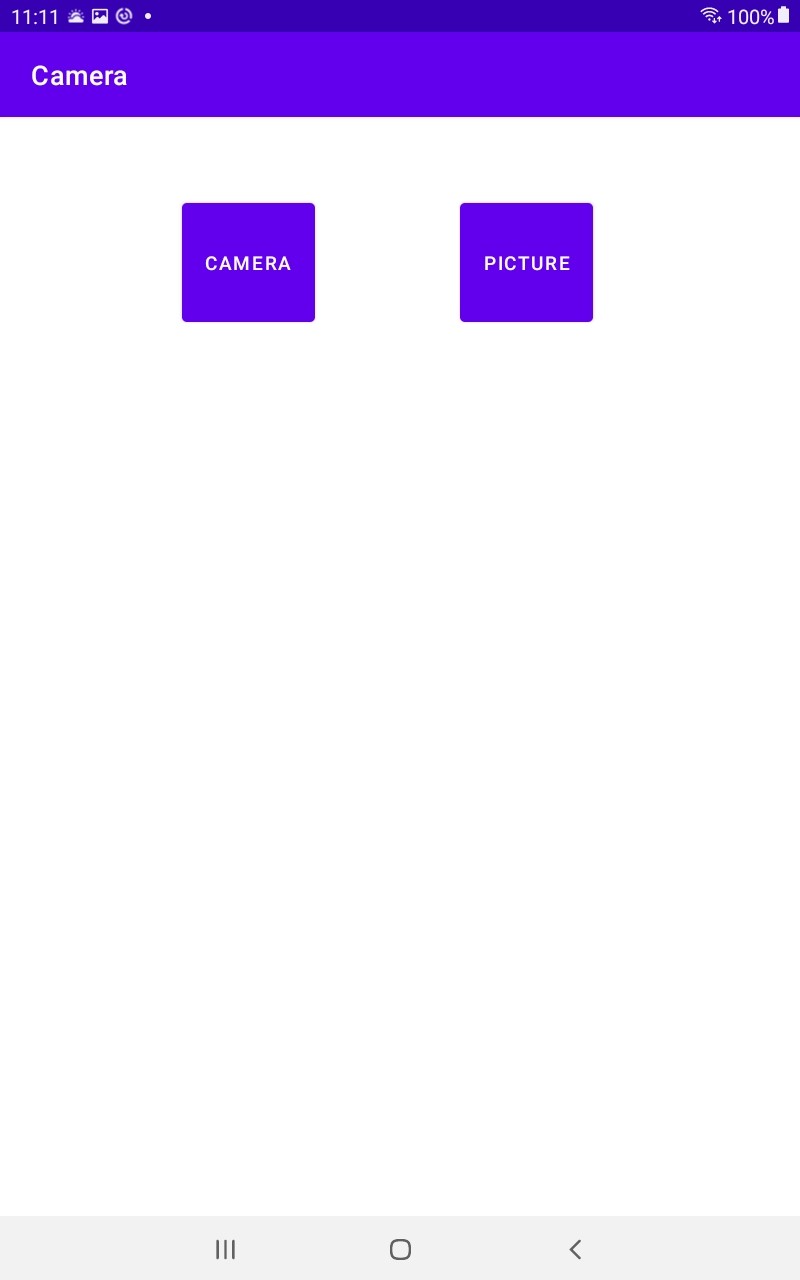

실행화면

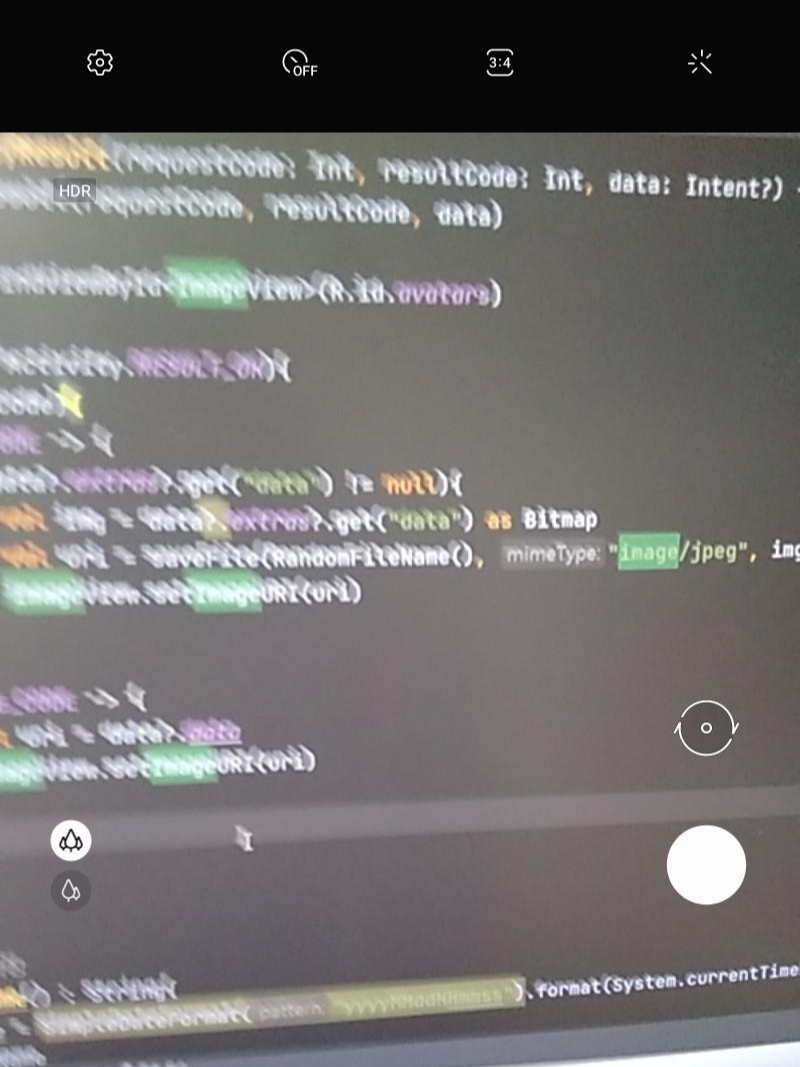

사진 촬영시 보이는 화면

촬영해서 저장된 파일

저장된 파일의 파일명

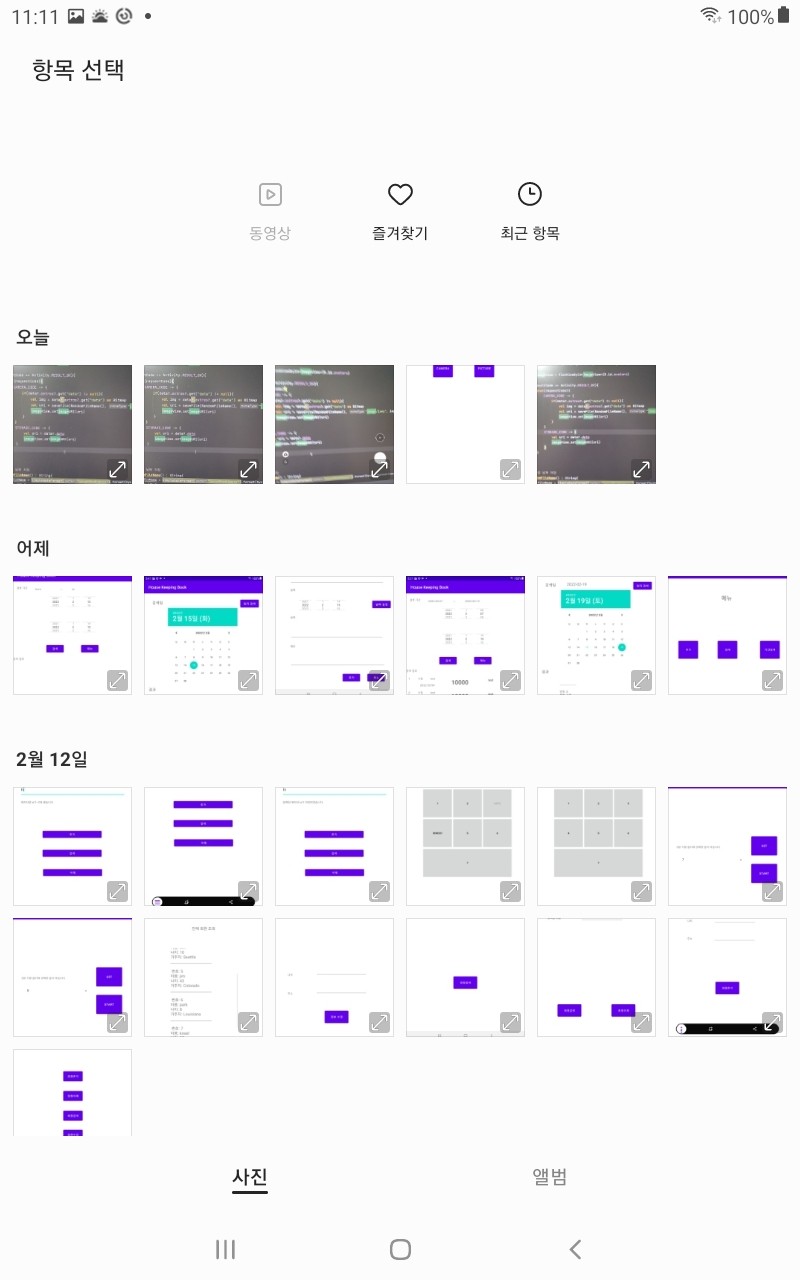

사진 불러오는 버튼 선택시 갤러리와 연결

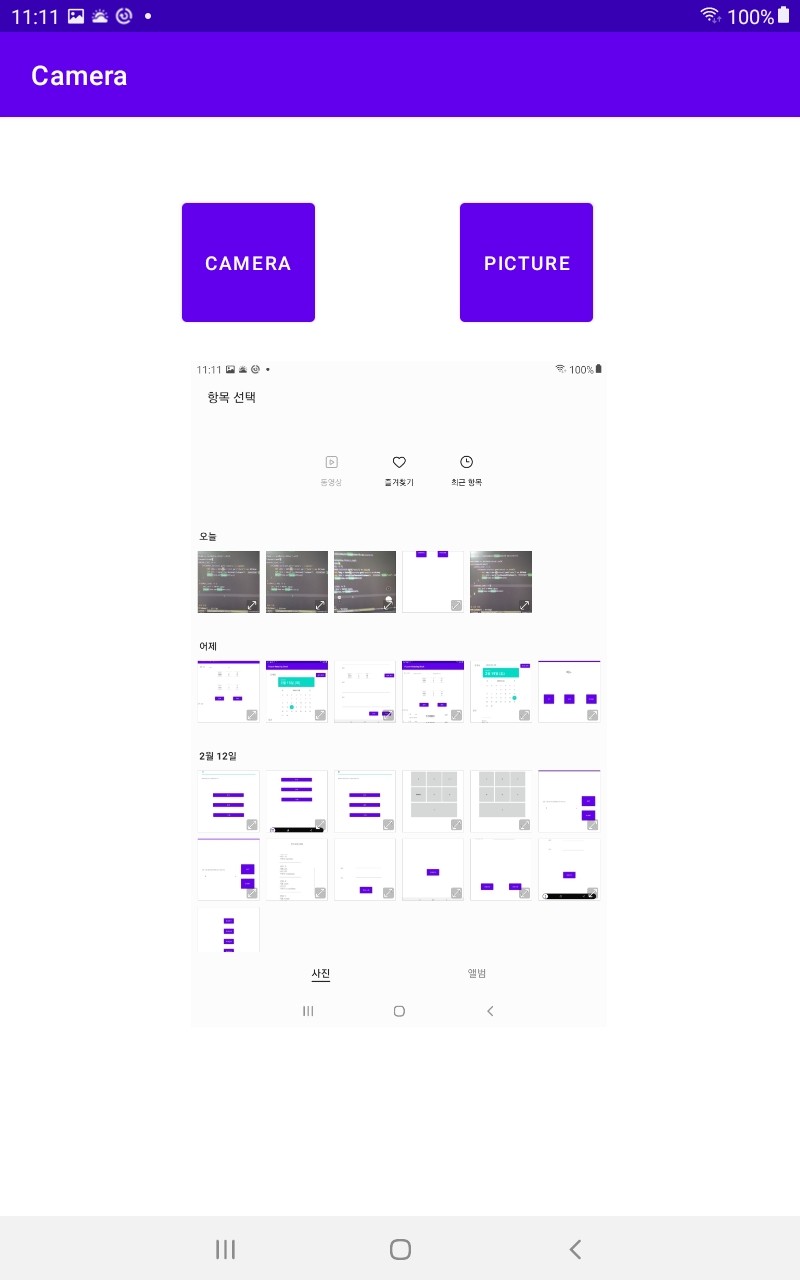

선택된 사진 불러와서 이미지와 연결
